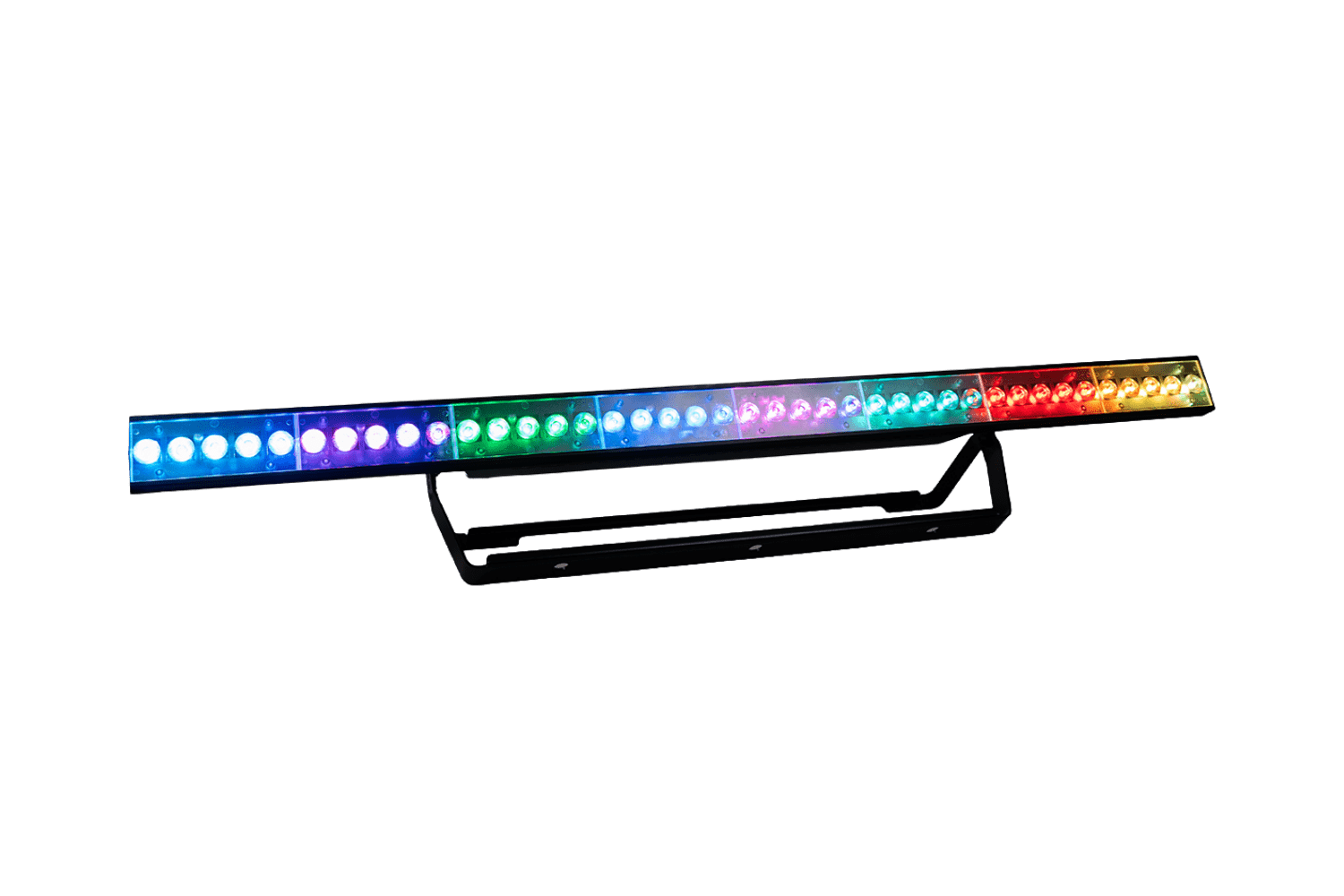

Event Lighting PIXBAR40FXT 40 x 1.5W RGB Pixel Control Bar

Name: Event Lighting PIXBAR40FXT 40 x 1.5W RGB Pixel Control Bar | BJs Sound & Lighting
Brand: Event Lighting
SKU: PIXBAR40FXT
Price: 349.00 AUD
Availability: BackOrder

$349.00

Pixel Bar with 40 x 1.5W RGB LEDs, Aluminium Fanless Housing, True1 in/out, 5 pin DMX in/out and 14° Beam Angle.

Preorder

SKU PIXBAR40FXT Categories Effect Lighting, Lighting, Wash Lighting Tag Event Lighting

Description

Event Lighting PIXBARs are designed for fixed installations and professional productions. The PIXBAR40FXT features full pixel control, a rugged aluminium housing, and fanless operation for silent, low-maintenance performance. Its tight beam optics and custom front lens design make it ideal for touring bands, stage visuals, and portable production environments where impact and reliability matter.

Applications

Live bands and touring productions
Stage backdrops and visual effects
Wall wash and architectural lighting
Portable event production rigs
Pixel mapping and chase effects
Club and venue installations
FX lighting for performance design

Specifications

Photometrics

Light Source: 40 x 1.5W RGB Pixel Control Bar
Beam Angle: 14˚
Output: 2,450 lux @ 2m
Refresh Rate: 24,000 Hz
LED Life: 50,000 hours

Effects

Dimming: 5 x 16-bit Dimming Curves
Strobe: 1~25Hz

Power

Input Voltages: 100~240V AC, 50/60Hz, 150W
Power Consumption: 65W
Power Connection: True1 in/out

Control

Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase, RDM*
Display: 4-button LCD control panel
Control Protocol: DMX512, Optional: Wireless DMX (WDMXTRXII/CRMXTRXII)
DMX Channels: 1 / 3 / 8 / 120 / 122
Control Interface: 5-pin XLR in/out
Software Upgrade via DMX: Yes

Housing
